Blood Bag Automatic Production Line

Brief Introduction:

The intelligent fully automatic rolling film blood bag production line is a sophisticated equipment designed for the efficient and precise manufacturing of medical-grade blood bags. This production line integrates advanced technologies to ensure high productivity, accuracy, and automation, meeting the demands of the medical industry for blood collection and storage.

Send email to us

Product Detail

Product Tags

Key components and functionalities of the production line include:

Film Material Supply System: This system ensures a continuous supply of specialized polymer film materials required for making blood bags. It maintains the quality and consistency of the film materials throughout the production process.

Film Material Processing Unit: This unit prepares and processes the film materials, including cleaning, heating, and coating, to meet the specific requirements for blood bag production.

Blood Bag Molding Molds: These molds shape the film materials into various components of the blood bags, such as bags, tubing, and connectors, according to predefined shapes and sizes.

Automated Assembly Systems: Various mechanical arms, conveyors, and assembly equipment are employed to automatically assemble the components of the blood bags with precision, ensuring high-quality assembly.

Sealing and Inspection Equipment: Sealing equipment, utilizing techniques such as heat sealing or ultrasonic welding, ensures airtight seals on the blood bags. Quality inspection systems are employed to detect any leaks or contamination in the sealed blood bags.

Intelligent Control System: The entire production line is controlled by an intelligent control system, which monitors and regulates the operation of various components to achieve automation and optimize production processes.

The integration of these components forms a complete production line capable of efficiently, accurately, and reliably manufacturing blood bags, meeting stringent quality and safety requirements of the medical industry. Additionally, the production line complies with relevant medical device standards and regulations to ensure the safety and effectiveness of the produced blood bags.

Features of Blood Bag Automatic Production Line

All parts in contact with products meet the cleanliness and anti-static standards of the medical industry, and all components are designed and configured according to GMP (FDA) standards.

The pneumatic part adopts German Festo for pneumatic parts, German Siemens for electric appliances, German Sick for photoelectric switches, German Tox for gas-liquid, CE standard, and independent vacuum in-line generator system.

The full-base block-type frame is sufficiently load-bearing and can be dismantled and installed at any time. The machine can work under separate clean protection, according to different users can be configured with different clean levels of laminar flow.

Material online control, the machine according to the requirements of the work situation to implement self-checking alarms; according to customer needs to configure the terminal online welding thickness detection, defective products automatic rejection technology.

Adopt thermal transfer film printing in place, also can be configured with computer-controlled thermal film printing; welding mold adopts in-line control of mold temperature.

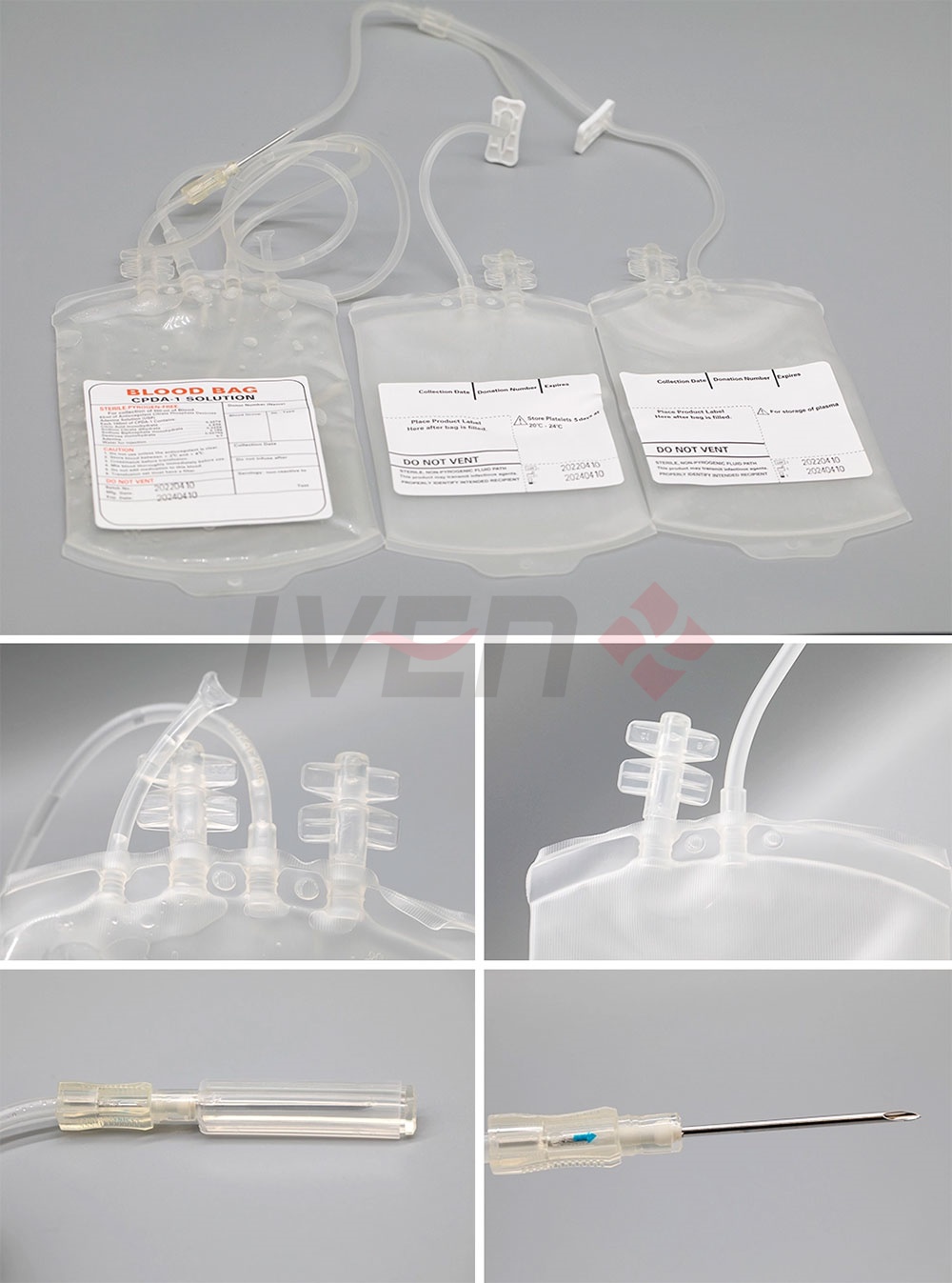

Scope of application: fully automatic production of PVC calendered film blood bags of various models.

Tech Parameters of Blood Bag Automatic Production Line

Machine dimensions	9800(L)x5200(W)x2200(H)
Production capacity	2000PCS/H≥Q≥2400PCS/H
Bag making specification	350ml—450ml
High-frequency tube welding power	8KW
High-frequency head side welding power	8KW
High-frequency full-side welding power	15KW
Clean air pressure	P=0.6MPa - 0.8MPa
Air supply volume	Q=0.4m³/min
Power supply voltage	AC380V 3P 50HZ
Power input	50KVA
Net weight	11600Kg
